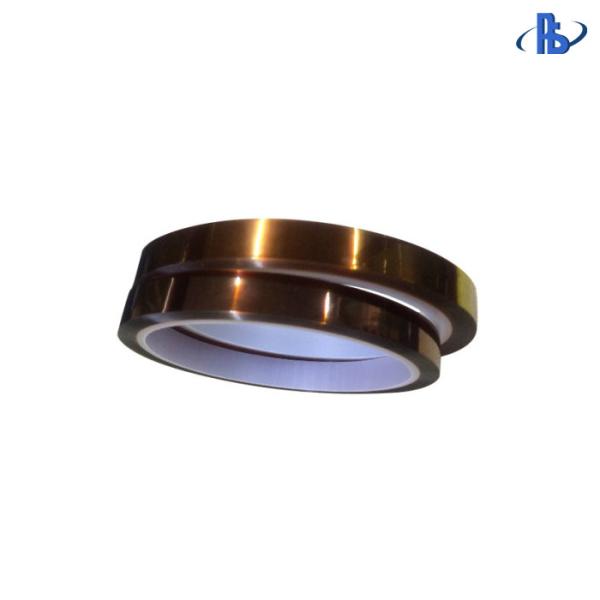

Pipe Insulation Tape For High Temperature Heat Resistant Polyimide
Tape Adhesive Silicone
Feature: The heat resistant tape is used polyimide film as a substrate,
specially treated with imported agent. It will leave no residue
when removed. High temperature resistance, abrasion resistance,
good mechanical properties. Widely used in the electronics
industry.
The polyimide tape which we produce have following characteristic:
1. Good resistance to aging.
2. Good resistance to heat
3. Competitive price.
4. High quality/timely delivery.
5. All of our products passed SGS report and ISO9001&ISO14000.
6. Offer colors as per customer's samples.
7. Mainly used for automobile industry, electrical industry, PCB
8. Offer special packing as per customer's requirements, such as
label, printing logo on cartons/boxes.
Structure:
| Substrate | Polyimide film(PI) |
| Adhesive | Silicone adhesive |
| Release film | Fluoro-Silicone release film |
Physical properties
| Color | Amber |
| Thickness | 0.05mm(XHT-PI5050), 0.06mm(XHT-PI6050) |
| Length | 33M, 66M |
| Width of the master roll | 500mm |
| Elongation | 50% |
| Tensile strength | ≥42N/25mm |
| release force | ≥26N/25mm |
| Initial adhesion | 24# |
| Permanent adhesion | 48H |
| Temperature tolerance(short term) | 280℃ |
| Temperature tolerance (long term) | 260℃ |
Note: The technical information and data, recommendations and other
statements provided are based on tests and experience that we think
are reliable, but the accuracy or completeness of such information
is not guaranteed. We suggest you to evaluate this product and
determine whether it is suitable to your application before using
it.
Storage: The tapes should not be exposed to direct sunlight, heat or
freezing. Stored in a cool and dry place under temperature of 4-26℃
with RH 40-50%.
Shelf life: 6 months for the day of manufacture.
Application:
· It can endure high temperature up to 260 °C within half an hour.
· electrical insulation, radiation resistance, solvement resistance
,heat resistance,etc.
· Its mostly applied for the motor insulation, protection of PCB
during wave soldering etc.
Without any residue after the tape is removed from the gold finger.
FAQ:
Q: How can I get a quotation?
A: Your detail information about your order is highly appreciated,
such as: material, size, artwork file, quantity, application,
etc..As soon as we receive your information, we'll quote you our
best price.
Q. What format of artwork files you prefer?
A: AI, CDR or PDF if possible, please.
Q: What is your payment ?
A: TT or LC at sight .
Q: Can you accept the mix products in one container ?
A: Yes,of course .
Q: How do you ship my goods?
A: By air express, by air, by sea or by truck, according to your
requirement.
We'll send you the tracking No.shipping details together with
photos of your goods after delivery.
