    Smooth Surface High Temperature Insulation Tape , Polyimide Film Adhesive Tape

    Ask Lasest Price
    Brand Name : PLAS
    Model Number : PL-PT01
    Price : US$3.8-5.0/ Square Meters, negotiated based on customer request
    Certification : SGS/SDS/ISO 9001
    Payment Terms : L/C, D/A, T/T, Western Union
    Supply Ability : 50000000 Square Meter/ Month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

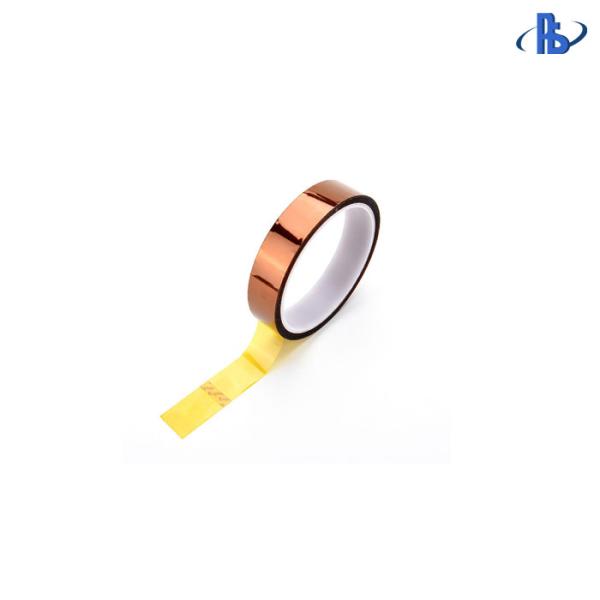

    Smooth Surface High Temperature Insulation Tape , Polyimide Film Adhesive Tape

    High Temperature Thermal Insulation Tape Heat Resistant Polyimide Adhesive Tape
    Feature: The heat resistant tape is used polyimide film as a substrate, specially treated with imported agent. It will leave no residue when removed. High temperature resistance, abrasion resistance, good mechanical properties. Widely used in the electronics industry.
    Structure:
    SubstratePolyimide film(PI)
    AdhesiveSilicone adhesive
    Release filmFluoro-Silicone release film

    Physical properties

    ColorAmber
    Thickness0.05mm(XHT-PI5050), 0.06mm(XHT-PI6050)
    Length33M, 66M
    Width of the master roll500mm
    Elongation50%
    Tensile strength≥42N/25mm
    release force≥26N/25mm
    Initial adhesion24#
    Permanent adhesion48H
    Temperature tolerance(short term)280℃
    Temperature tolerance (long term)260℃

    Note: The technical information and data, recommendations and other statements provided are based on tests and experience that we think are reliable, but the accuracy or completeness of such information is not guaranteed. We suggest you to evaluate this product and determine whether it is suitable to your application before using it.

    Storage: The tapes should not be exposed to direct sunlight, heat or freezing. Stored in a cool and dry place under temperature of 4-26℃ with RH 40-50%.

    Shelf life: 6 months for the day of manufacture.


    Application:

    1. H-grade insulation of motor;

    2. electrical equipment and cable.

    3. Golden finger

    4 .Li-battery inside


    FAQ:
    Q: How can I get a quotation?
    A: Your detail information about your order is highly appreciated, such as: material, size, artwork file, quantity, application, etc..As soon as we receive your information, we'll quote you our best price.
    Q. What format of artwork files you prefer?
    A: AI, CDR or PDF if possible, please.
    Q: What is your payment ?
    A: TT or LC at sight .
    Q: Can you accept the mix products in one container ?
    A: Yes,of course .
    Q: How do you ship my goods?
    A: By air express, by air, by sea or by truck, according to your requirement.
    We'll send you the tracking No.shipping details together with photos of your goods after delivery.
